Description

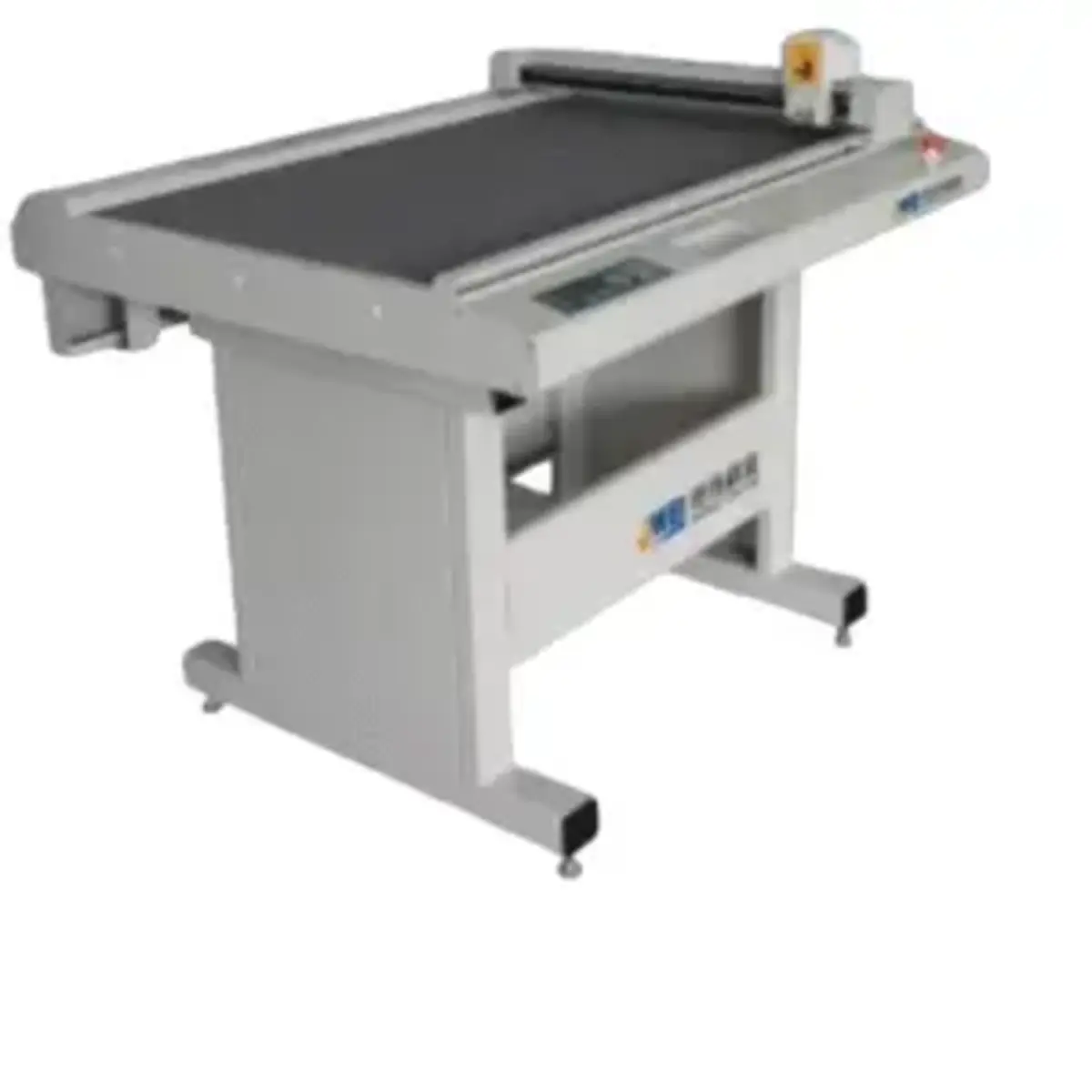

The EDO-1653-A Cutting Plotter Machine by Jingwei is a professional-grade flatbed cutting plotter designed for cardboard, vinyl, PVC board, kraft paper, and marking film.
Engineered for accuracy, durability, and versatility, it’s the perfect cutting solution for packaging prototypes, vinyl signage, and custom sticker production.
With a 900x600mm effective cutting area, this machine provides an ideal balance between compact size and industrial performance — making it a top choice for packaging designers, signage manufacturers, and print shops.
Dual Tool System – Cut & Mark in One Operation
The EDO-1653-A features an advanced dual tool system that combines:
-
A tungsten carbide blade for precise cutting
-
A plotting pen tool (compatible with gel ink or ball pens)
This configuration allows you to cut and mark in one seamless operation, ideal for drawing fold lines, registration marks, or annotations — all without changing tools or removing the material.
High-Speed Precision Cutting
Built for productivity and reliability, the EDO-1653-A cutting plotter operates at up to 1200mm/s with ≤0.05mm repeat precision.
A digital servo driver ensures smooth and stable motion, while the vacuum suction system keeps materials firmly in place during cutting.
The result: consistent accuracy, even during long production runs.
Key Technical Specifications
| Specification | Details |
|---|---|
| Effective Cutting Area | 900x600mm |
| Maximum Speed | 1200mm/s |
| Cutting Thickness | Up to 1.5mm |
| Precision | ≤0.05mm repeat accuracy |
| Interface | Ethernet connection |
| File Format | HP-GL compatible (CorelDRAW, AutoCAD, Illustrator) |
| Power Supply | AC 220V ±10%, 50Hz (Indian Standard) |
| Certifications | CE, ISO, SGS |
Ideal Applications & Industries
The Jingwei EDO-1653-A Cutting Plotter is perfectly suited for:
-
Packaging prototypes and cardboard box samples
-
Vinyl signage and sticker cutting
-
Marking film applications
-
PVC board and foam sheet fabrication
-
Design studios and printing houses
Used widely across India’s packaging, advertising, and footwear industries, this flatbed cutting plotter enables in-house production with exceptional accuracy — eliminating the need for expensive die-cutting outsourcing.
Why Choose the EDO-1653-A
-
Compact and efficient 900x600mm workspace
-
Dual tool system for maximum versatility
-
Industrial-grade build for 24/7 operation
-
Compatible with Crispin CAD/CAM footwear design systems for seamless pattern cutting
-
Backed by local service, training, and technical support
Summary
The Jingwei EDO-1653-A delivers industrial reliability in a compact, high-precision form factor.
It’s a smart investment for small to medium businesses seeking faster prototyping, reduced production costs, and enhanced accuracy in packaging, signage, and footwear pattern cutting.
