Description

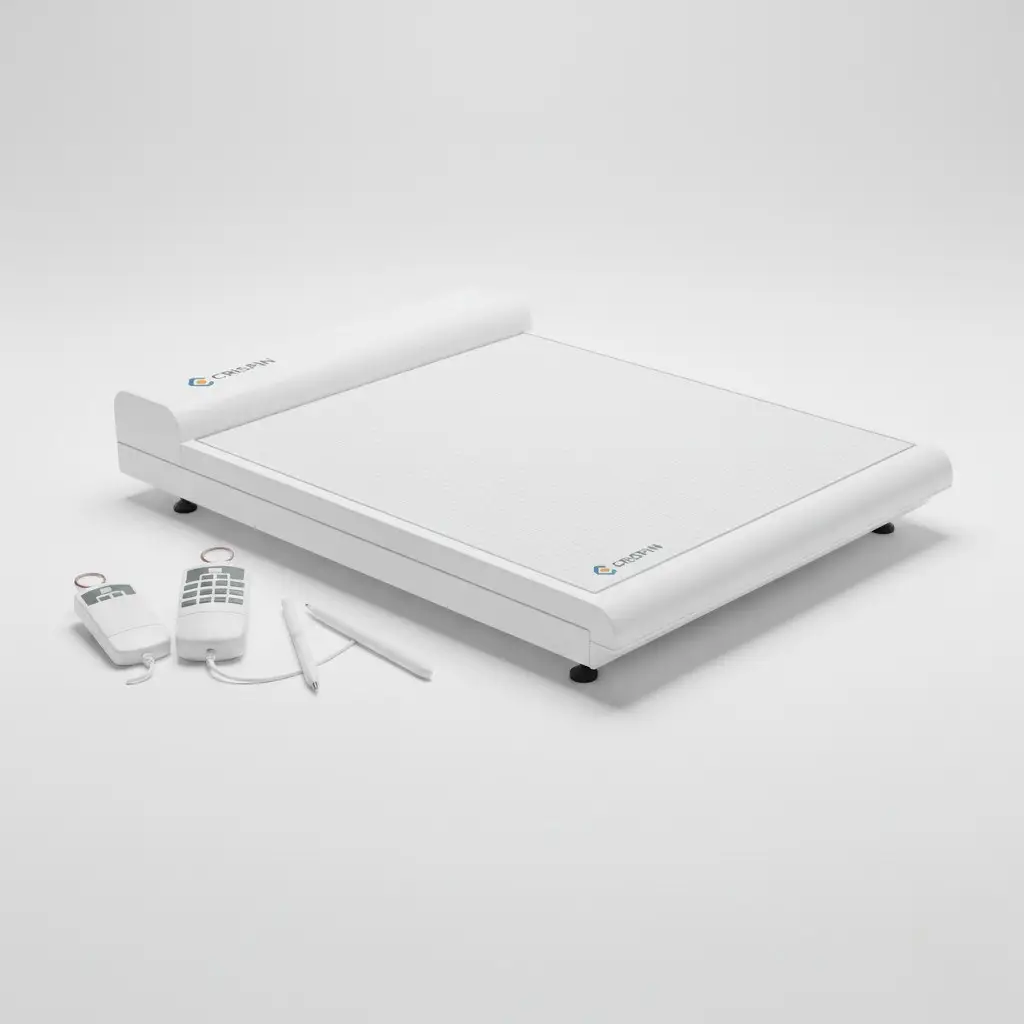

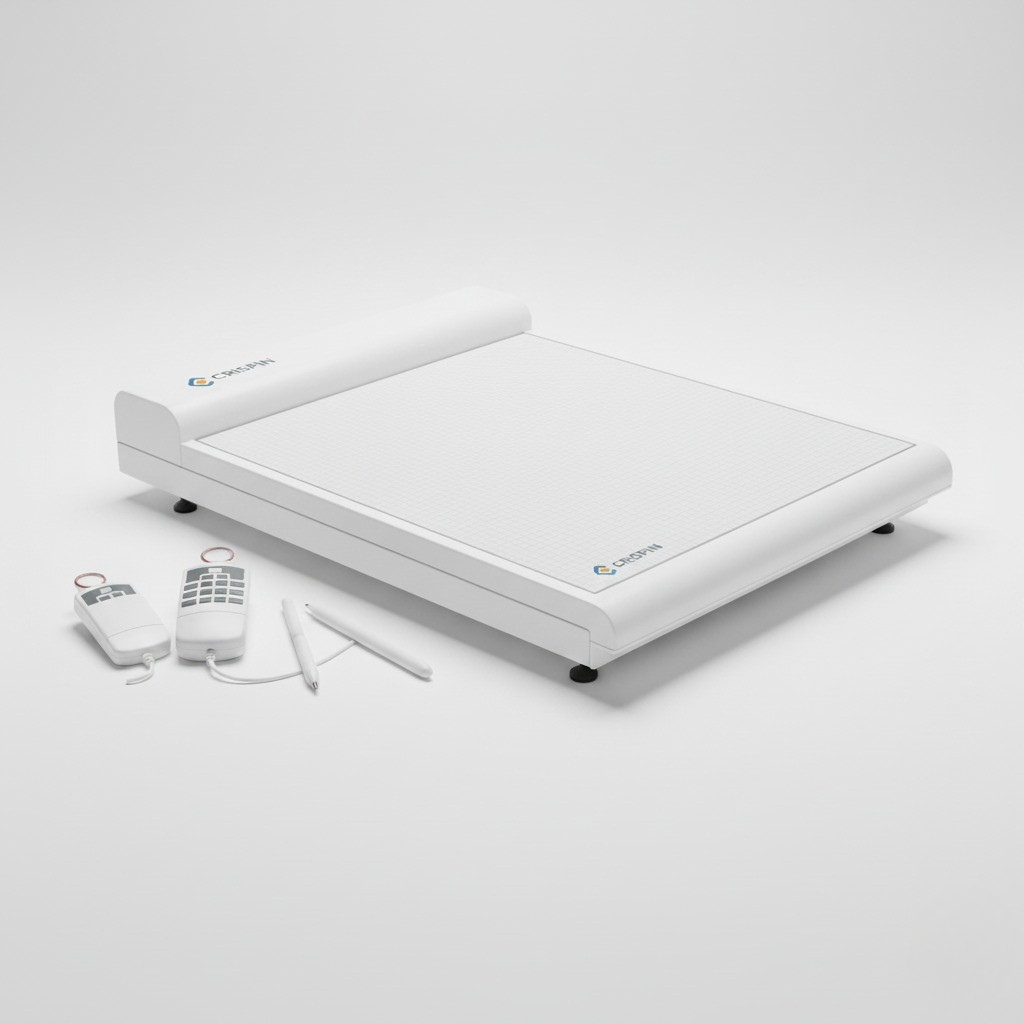

A digitizer (digitizing tablet) is a precision input device that converts physical drawings, templates, or patterns into digital coordinates for CAD software. By tracing your artwork with a cursor or stylus, the digitizer captures accurate X-Y coordinates that your CAD system can edit, scale, and use for production. It eliminates manual tracing errors and speeds up design workflows.

Key Features

Industry-Leading Resolution & Accuracy

• Up to 12,700 LPI resolution

• Standard accuracy: ±0.010″ (±0.254 mm)

• Optional ±0.005″ high-accuracy version

• Repeatability: 1 LSB

Four Digitizer Sizes Available

• DB6-2024 — 20 × 24″ active area

• DB6-2436 — 24 × 36″ active area

• DB6-3648 — 36 × 48″ active area

• DB6-4460 — 44 × 60″ active area

Each model includes industrial-grade construction with ergonomically designed footprint and lightweight body.

Integrated USB Connectivity

• Plug-and-play USB connection

• Powered directly through USB (no power supply needed)

• Optional RS-232 serial port (requires power supply)

Choice of Pointing Devices

• Cordless 4-button cursor

• Corded/cordless 16-button cursor

• Corded/cordless click-tip pen with two side buttons

• Fully programmable buttons for efficiency

Convenience Features

• Integrated mounting channel for pen tray & accessories

• Easy installation with GTCO TabletWorks driver

• Supports 32 industry-standard output formats

• Programmable macros (RS-232 mode)

What’s Included

✓ GTCO DrawingBoard VI digitizer (choose your size)
✓ Corded or cordless transducer (cursor/pen)
✓ USB cable
✓ Pen/cursor tray
✓ Mounting brackets (except DB6-2024)

Available Options

Transducer Options

• Cordless 4-button cursor

• Corded/cordless 16-button cursor

• Corded/cordless click-tip pen with two side buttons

Other Accessories

• Clear overlay

• Manual lift/manual tilt pedestal

• RS-232 Serial Kit (power supply + cable)

Technical Specifications

• Platform: PC

• Drivers: Windows 7, 8, 10

• Interfaces: USB & RS-232

• Resolution: Up to 12,700 LPI

• Accuracy: ±0.010″ (standard) / ±0.005″ (optional)

• Repeatability: 1 LSB

• Proximity:

  • Cordless: >0.4 in (10.2 mm)

  • Corded: >0.8 in (20.3 mm)

• Data Rate: Up to 200 coordinate pairs/sec

• Baud Rate: Up to 38,400

• Technology: Electromagnetic

• Output Formats: 32 industry-standard formats

• Operating Modes: Point, Line, Run, Track, Incremental, Prompt

• Power (USB): 5V DC, 100 mA

• Power (Serial): 9V DC, 200 mA

• Certifications: UL, EN60950, FCC, CE, VCCI
