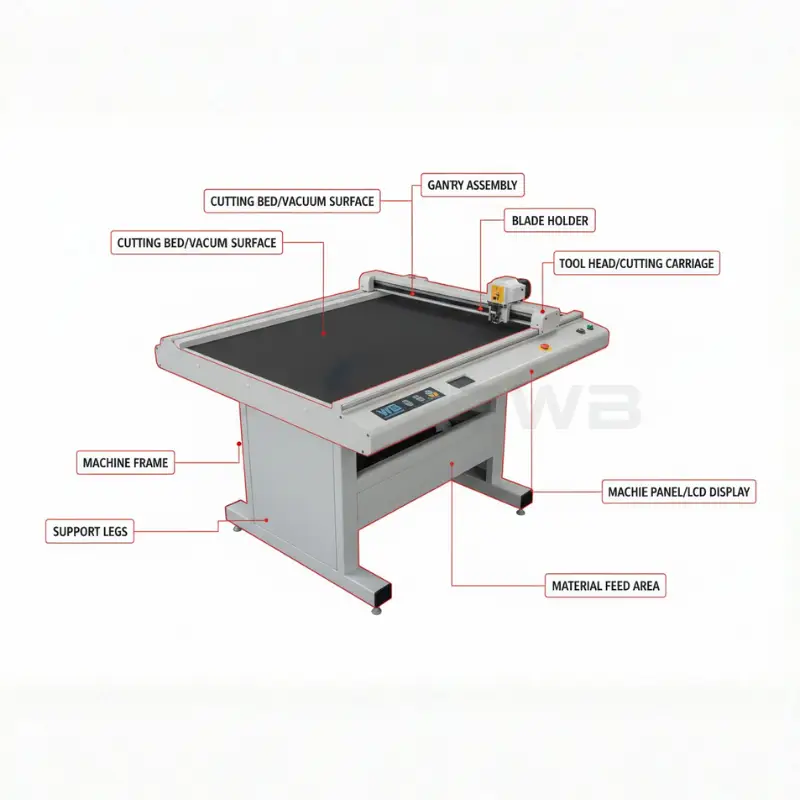

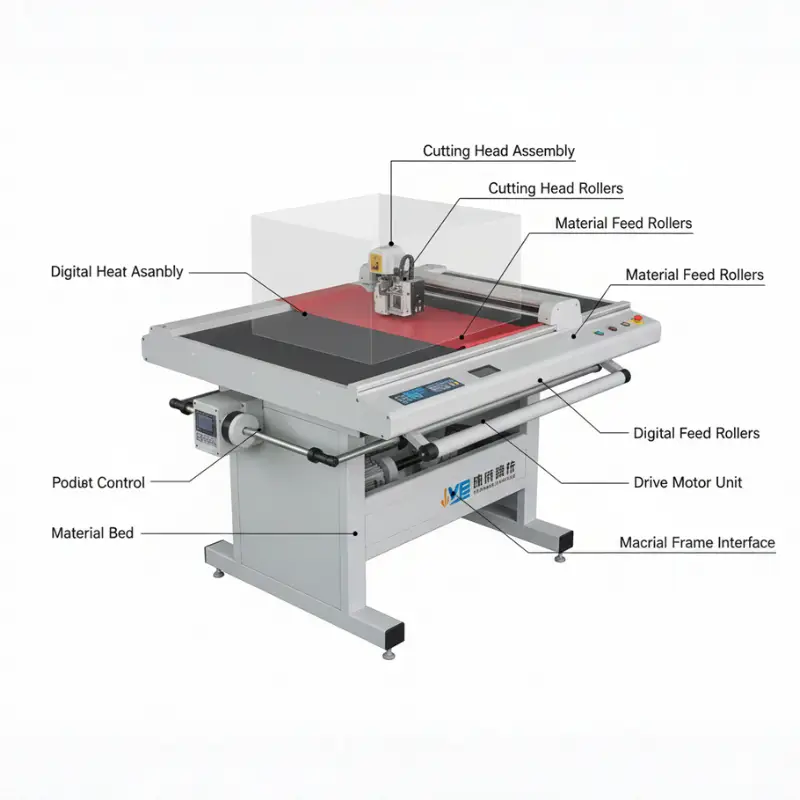

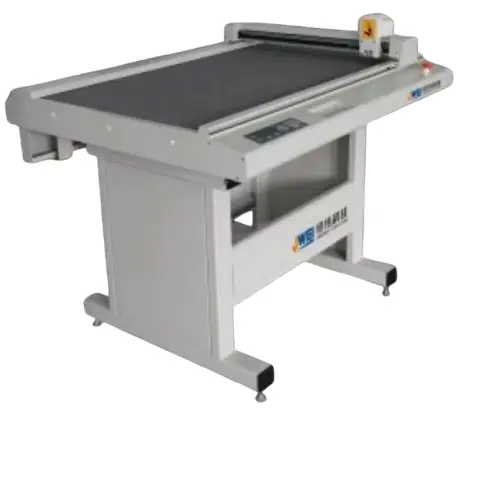

EDO-1653-A Cutting Plotter Machine – 900x600mm Dual Tool System

Professional Cardboard & Vinyl Cutting Plotter for Packaging & Signage

The EDO-1653-A cutting plotter machine is a high-performance flatbed cutting plotter designed for precision cutting of cardboard, vinyl, PVC board, kraft paper, and marking film. With its compact 900x600mm cutting area, this versatile cutting plotter delivers professional results for packaging prototypes, signage production, and custom sticker cutting applications.

Dual Tool System – Cut & Mark in One Operation

This cutting plotter features an innovative dual tool configuration combining a precision tungsten carbide blade cutting tool with a plotting pen tool (gel-ink/ball pen compatible). Switch seamlessly between cutting operations and marking fold lines, registration marks, or design annotations without material removal. Perfect for packaging designers, print shops, and signage businesses requiring fast prototype development.

High-Speed Precision Cutting Performance

Operating at speeds up to 1200mm/s with exceptional ≤0.05mm repeat precision, the EDO-1653-A cutting plotter machine ensures consistent, accurate cuts every time. The digital servo driver and vacuum suction fixing system guarantee stable material holding and smooth cutting operation across extended production runs.

Key Technical Specifications

• Cutting Area: 900x600mm effective workspace
• Maximum Speed: 1200mm/s for fast production
• Cutting Thickness: Up to 1.5mm material compatibility
• Precision: ≤0.05mm repeat accuracy
• Interface: Ethernet connectivity for seamless file transfer
• Software Compatibility: HP-GL format (CorelDRAW, AutoCAD, Illustrator compatible)
• Power Supply: AC 220V ±10%, 50HZ (Indian standard)
• Certifications: CE, ISO, SGS certified quality

Ideal Applications & Industries

Perfect for packaging prototypes, vinyl signage cutting, custom sticker production, cardboard box samples, PVC board fabrication, and marking film applications. Indian businesses in packaging, printing, advertising, and design studios rely on this cutting plotter machine for cost-effective in-house production without expensive die-cutting outsourcing.

The EDO-1653-A combines industrial-grade reliability with compact workspace efficiency, making it the smart choice for small to medium businesses looking to improve turnaround times, reduce costs, and enhance production capabilities.
